- Charge Status: Yes
- High-concerned chemical: None
- Origin: Mainland China
- Hoist type: Wire Rope Hoist
- WhatsApp: +86 13838227617
- Lifting Speed: 16 m/min, 10 m/min, 6 m/min
- Load Capacity: 300kg, 500kg
- Material: Steel , Aluminum Alloy, Vinyl

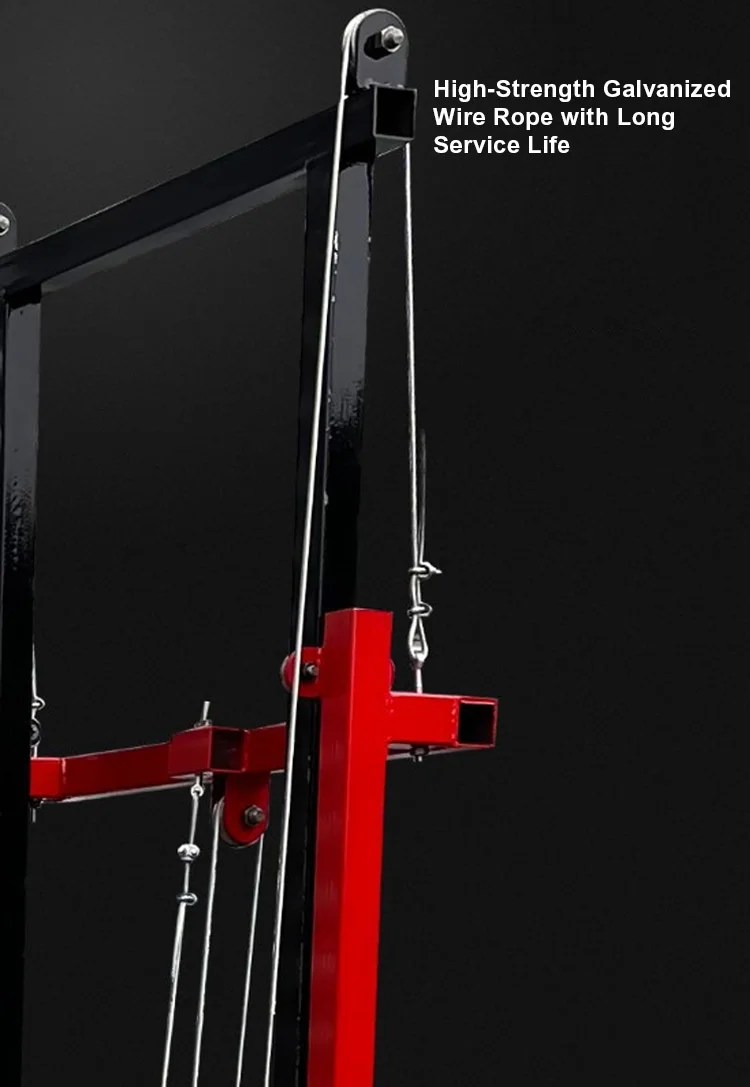

- Sling Type: Wire Rope
- wire rope diameter: 6 mm, 7MM
- Working Temperature: -40~150℃
- Brand Name: YG
- Place of Origin: Henan, China
- Applicable Industries: Advertising Company, Building Material Shops, Construction Engineering, Construction works , Energy & Mining, Farms, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Home Use, Hotels, Industrial Manufacturing, Machinery Repair Shops, Manufacturing Plant, Mining & Resource Extraction, Other, Printing Shops, Restaurant, Retail, Warehouse & Logistics
- Control Mode: Remote Control
- Machinery Test Report: Provided
- Motor Power: 1kw, 2kw, 3kw, 1.1kw 2kw 3kw
- Operation Type: Wireless Remote Control
- Power Source: Electric
- Voltage: 220 V, 110 V, 380 V, 110v 220v 240v 380v Optional
- Warranty: 1 Year
- Weight (KG): 180kg

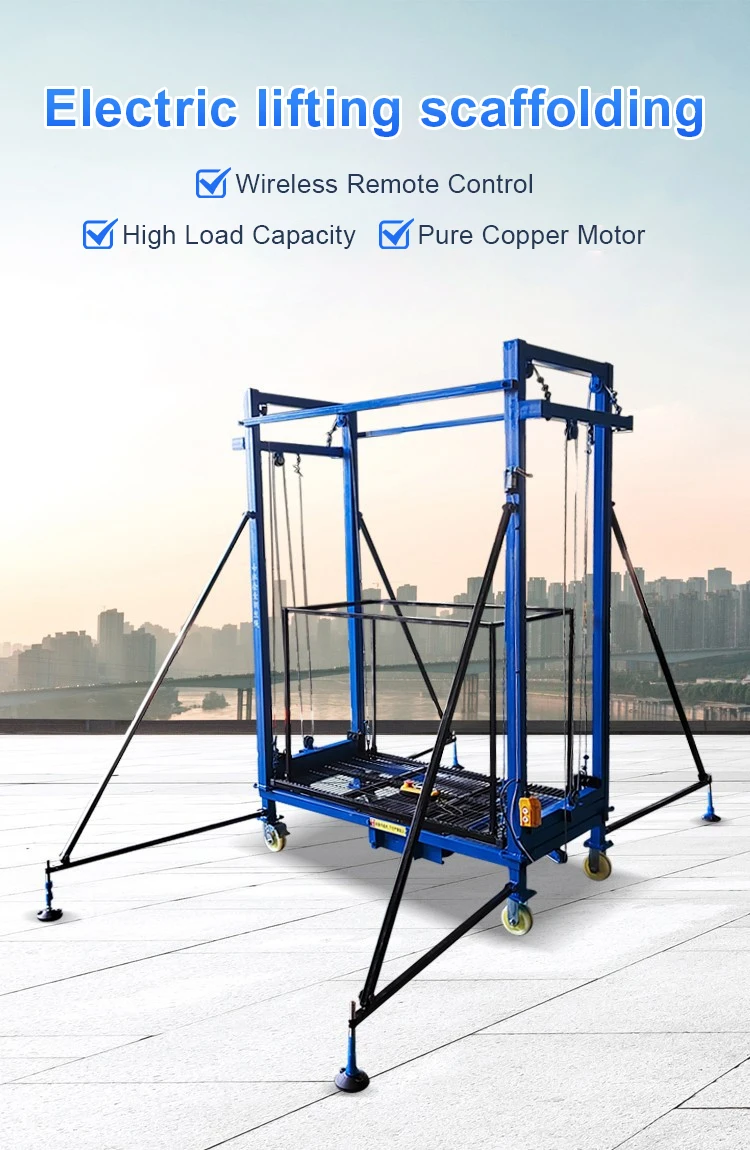

- Product name: New Remote Control Electric Scaffolding Electric Lift
- Usage: Lifting
- Keywords: Goods Lift
- Control methods: Wireless Control
- Color: Customers’ Requirements
- Main Material: high-duty steel structure
- Load capacity: 500/300/200kg
- Lift Drive: Electric motor

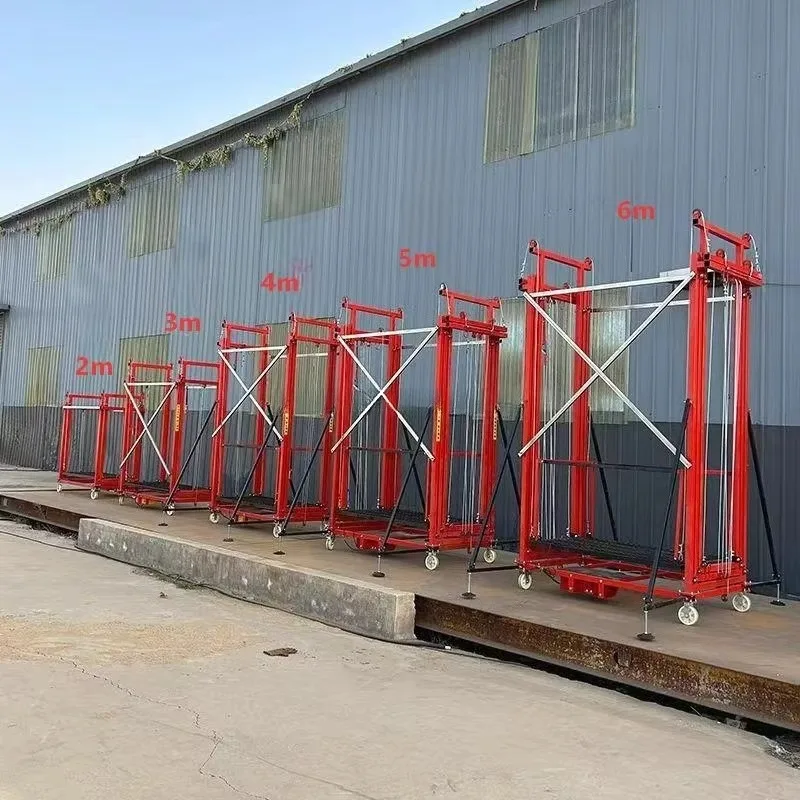

Electric Scaffolding Specifications
|
Lifting Height
|
Rated Load
|
Overall Dimensions
|
Platform Dimensions
|
Packing Dimensions
|
|
2 Meter
|
500KG
|
1950*950*1600mm
|
1500*760mm
|
1750*1000*750mm
|
|
3 Meter
|
500KG
|
1950*950*2300mm
|
1500*760mm
|
2200*1000*750mm
|
|
4 Meter
|
500KG
|
1950*950*2800mm
|
1500*760mm
|
2700*1000*750mm
|
|
5 Meter
|
500KG
|
1950*950*2500mm
|
1500*760mm
|
2400*1000*750mm
|
|
6 Meter
|
500KG
|
1950*950*2900mm
|
1500*760mm
|
2800*1000*750mm
|
|
7 Meter
|
500KG
|
2250*1100*3100mm
|
1500*760mm
|
3000*1200*750mm
|
|
8 Meter
|
500KG
|
2250*1100*3500mm
|
1500*760mm
|
3400*1200*750mm
|
|
9 Meter
|
500KG
|
2250*1100*3400mm
|
1500*760mm
|
3300*1200*750mm
|
|
10 Meter
|
500KG
|
2250*1100*3500mm
|
1500*760mm
|
3400*1200*750mm
|
|
12 Meter
|
500KG
|
2250*1100*3500mm
|
1500*760mm
|
3400*1300*750mm
|
|
15 Meter
|
500KG
|
2250*1100*4200mm
|
1500*760mm
|
4100*1300*750mm
|

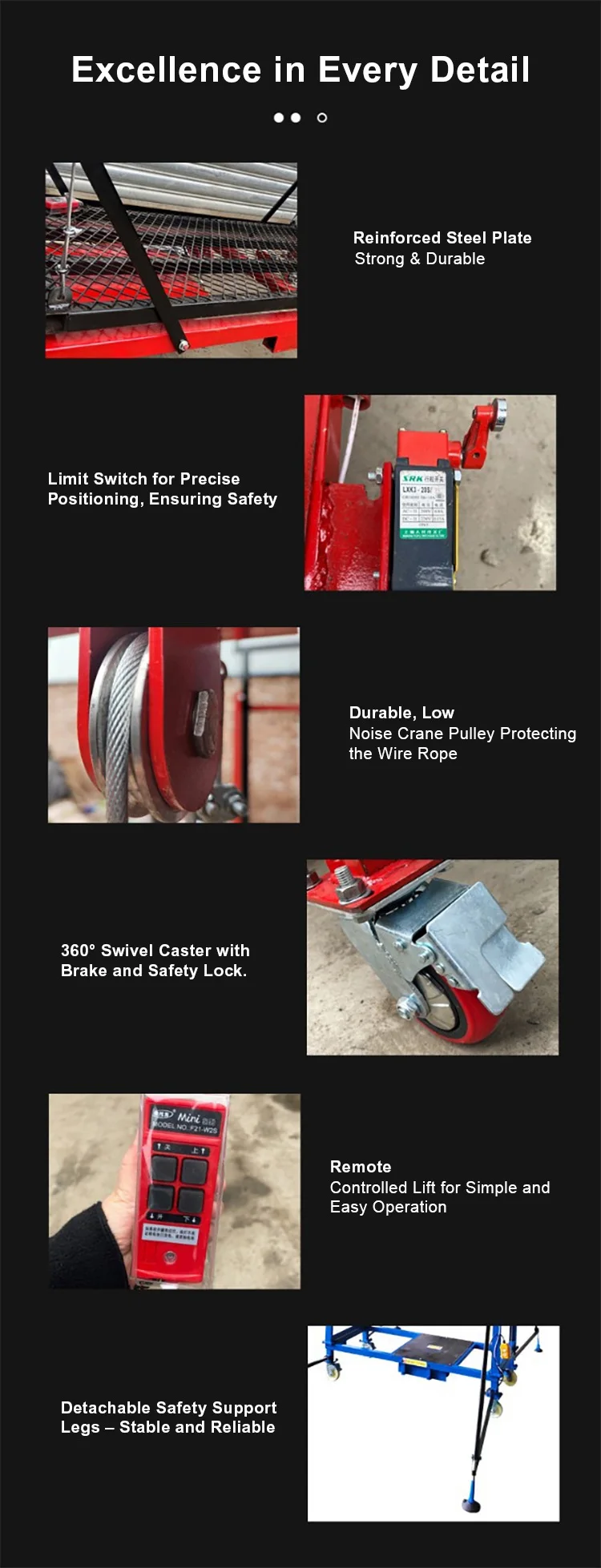

Product Details
Customization is available according to project requirements.
