Why Choose Auto feeding CNC Oscillating Knife Cutter?
Automatic feeding cutting machine ,it is suit for coil automatic cutting ,automatic feeding ,continuous cropping is suitable for batch processing products.

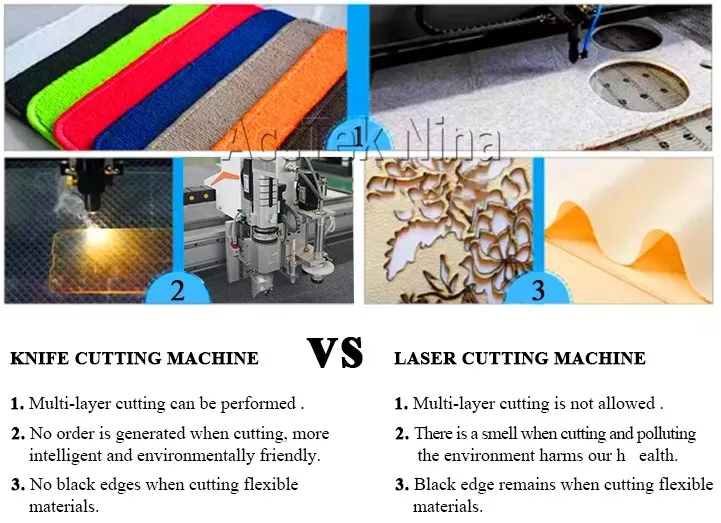

1. its cutting speed is 5-8 times faster than laser cutting machine.
2. Advanced computerized CNC system, which is easy to operate with Ethernet port.
4. Oscillating knife cutting machine can cut soft materials with perfect edges and corner.
5. Oscillating knife cutting machine adopts Japan YASKAWA servo motor and drive,fast cutting speed with hih precision.

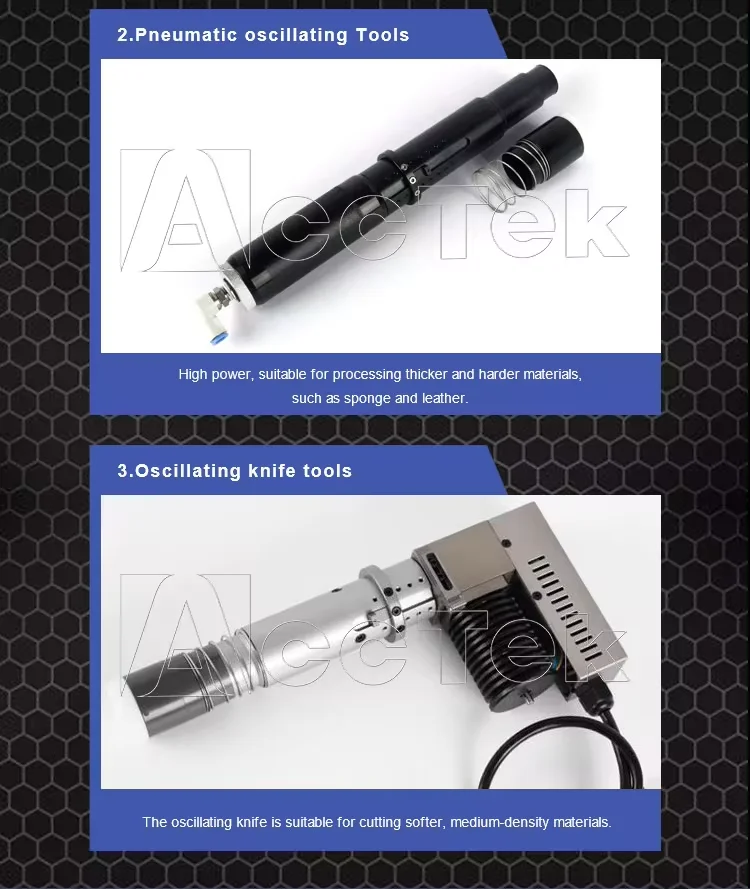

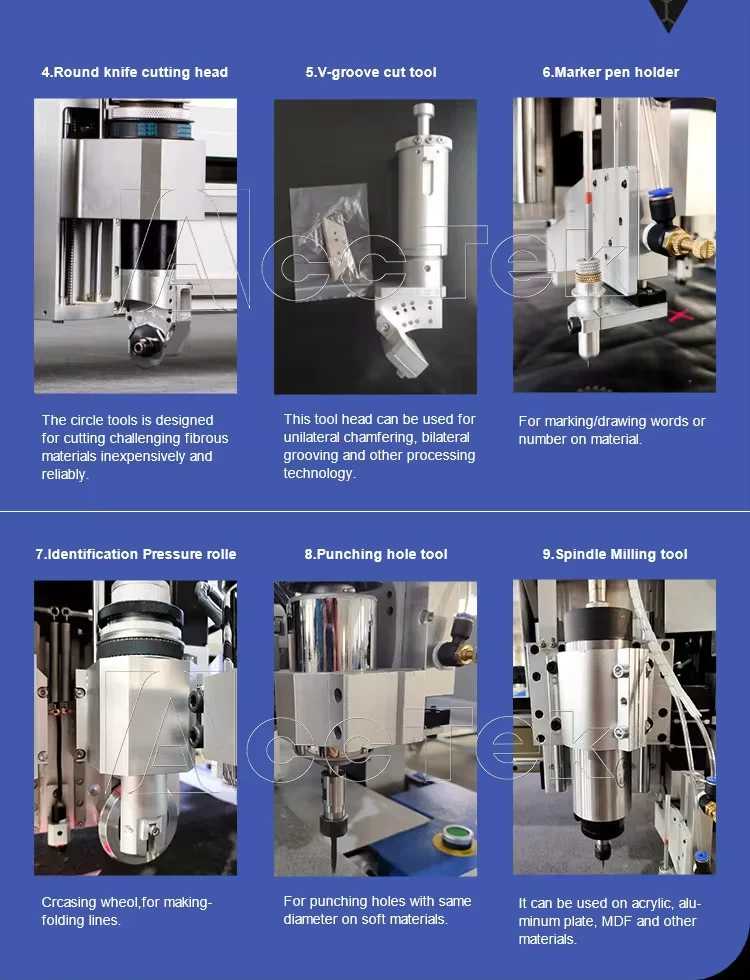

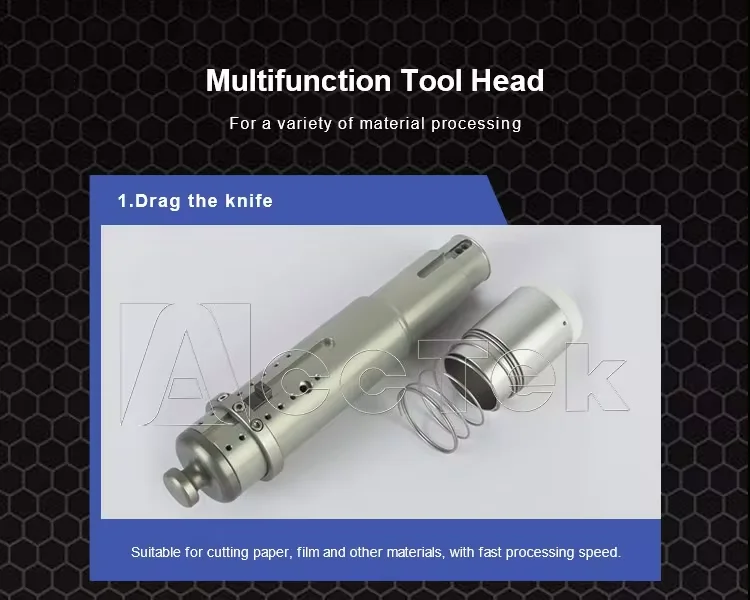

6. Oscillating knife cutting machine can be equipped with different tools to meet a variety of needs.
7. Special safety sensing device meets the European standard.

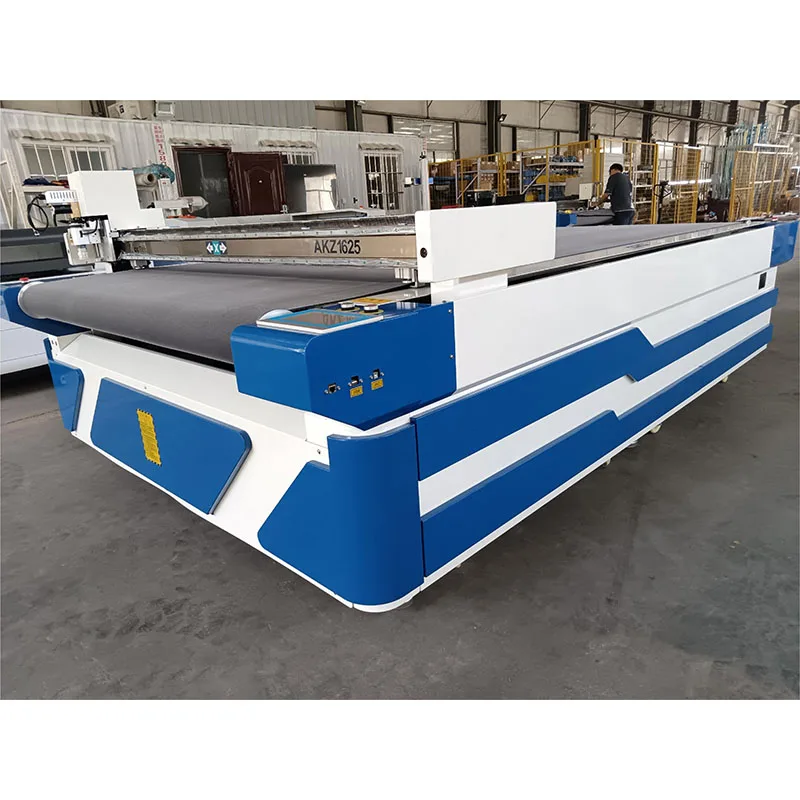

Parameters of Oscillating Knife Cutting Machine for Rubber Gasket
|
Model |
AKZ1625 |
|
Max. Cutting size |
1600*2500mm |
|
Power |
12KW |
|
Security Device |
High sensitive infrared induction |
|
Cutting speed |
Max. 1200mm/s (can be set up according to different materials) |
|
Movement speed |
Maximum 1500mm/s |
|
Cutting thickness |
Maximum 20mm (set according to different materials and tools) |
|
Drive system |
Taiwan Delta servo motor, Taiwan PMI linear guide rails |
|
Control system |
Chinese Brand RD control system |
|
Data transmission method |
USB port or Ethernet |
|
Suport file |
DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc. |
Detail photos of Oscillating Knife Cutting Machine for Rubber Gasket

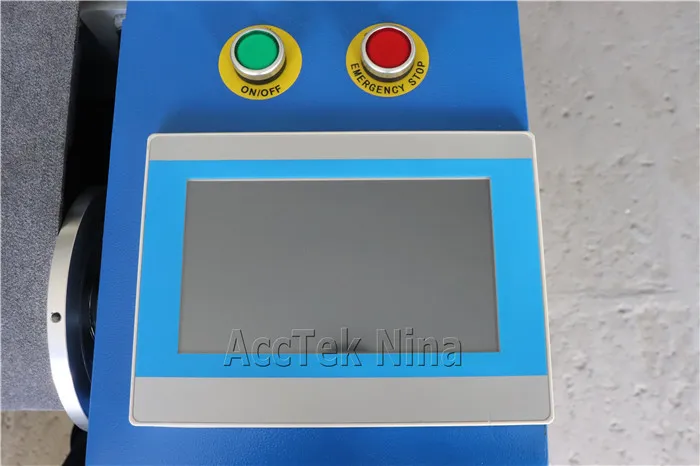

# Ruida controller with full touch screen
Compatible with AI, BMP, PLT, DXF, DST and other graphic formats; simple graphic drawing, text editing functions,
and support for editing and layout of imported data
# 9kw vacuum pump. with silencer
# Control space for elelctric components

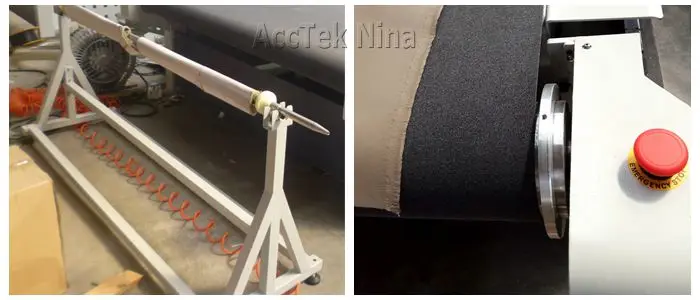

# Standard feeding roller frame
# Auto feeding system with emergency stop buttorn

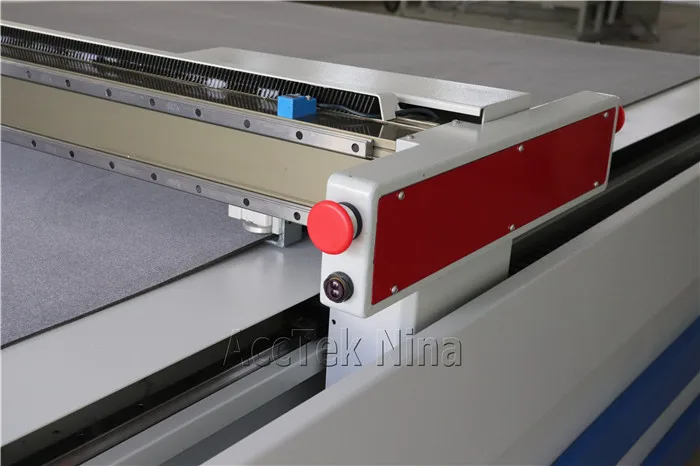

# Safety device
Being equipped with infrared sensor and emergency stop devices at the sides of the machine, safety is guaranteed.
Applications of Oscillating Knife Cutting Machine for Rubber Gasket
All kinds of Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive,
photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc. .
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast,
Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
*Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)
Besides EVA foam, CUTCNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board,
EPE foam, polyethylene foam, PE foam, PVC foam, etc. It’s widely used for packaging protection, advertising display, termal insulation,
model & mock up making, puzzle and pattern cutting, etc.
